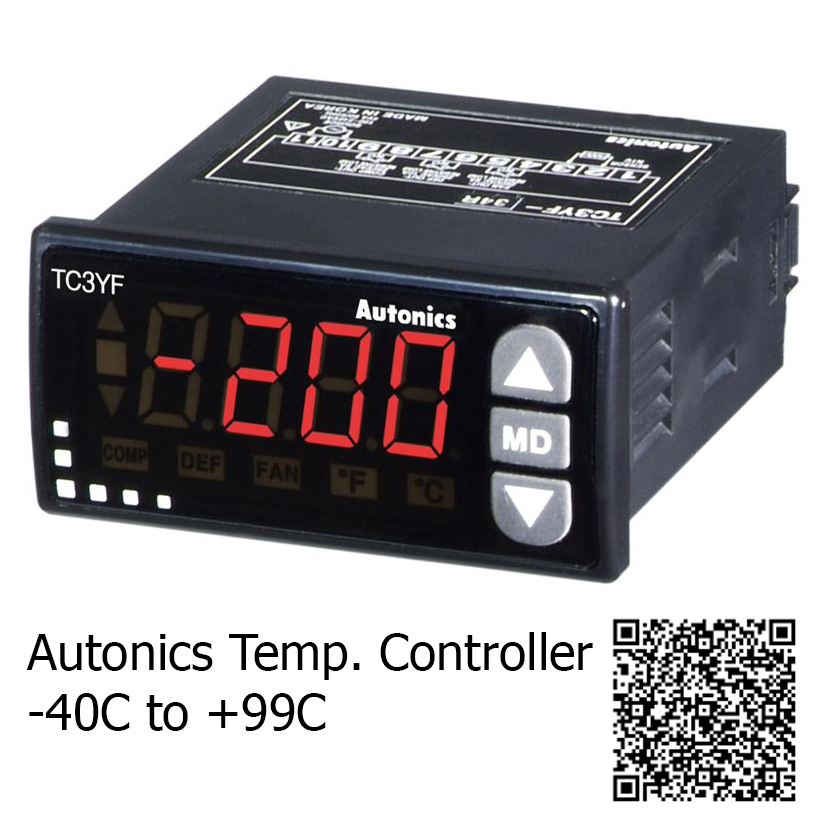

Autonics cooling Temp.controller TC3YF-34R-N 3relays[ Fan/Defrost/Compressor ] input 100-240vac Full perfermance

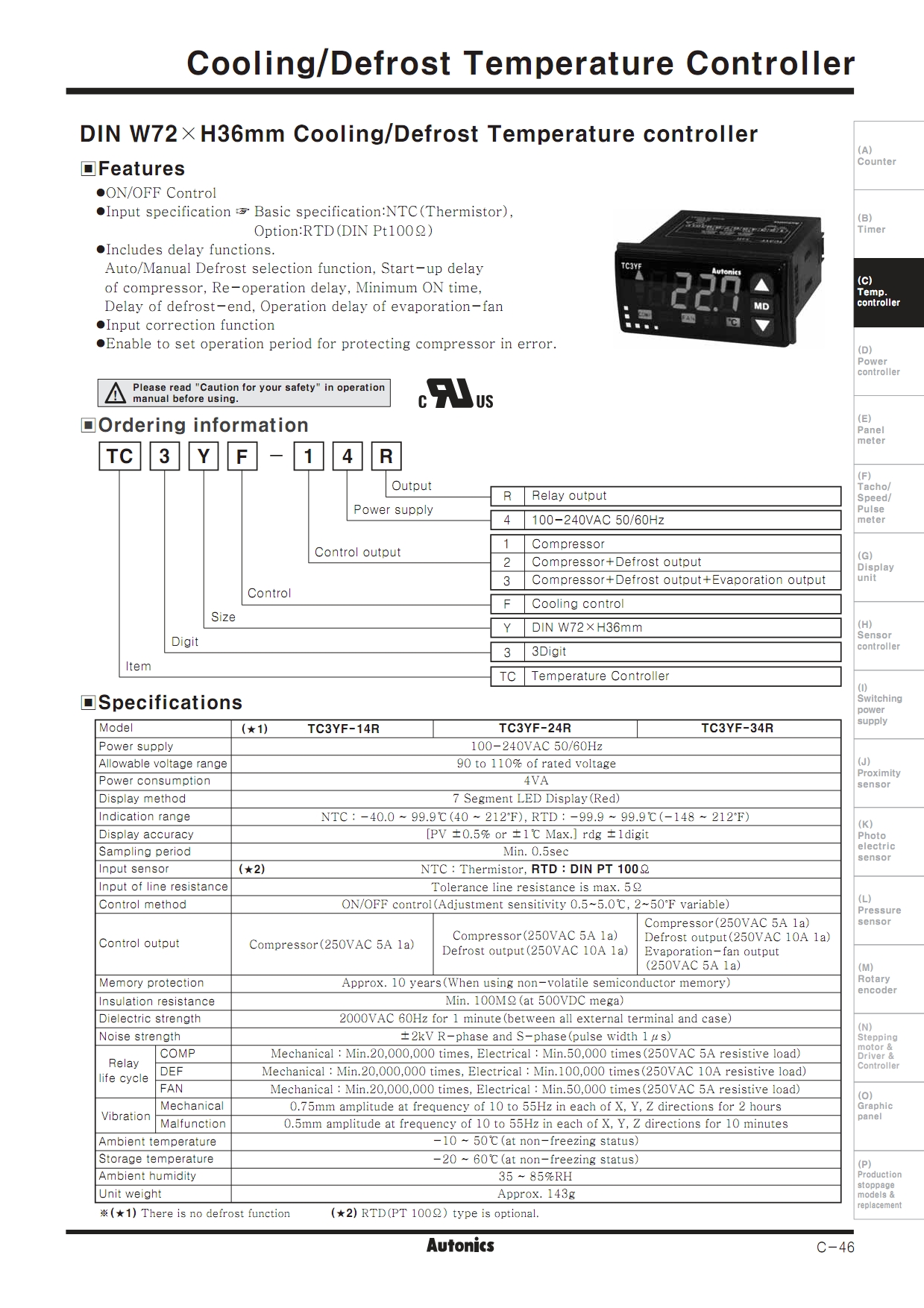

Specifications

Allowable Voltage Range90 ~ 110% of rated voltage

Power Consumption4 VA

Indication Method7 Segment LED Display (Red)

Display RangeNTC : - -40.0 ~ 99.9°C (40 ~ 212°F)

Indication Method[PV ±0.5 % or ±1 °C Max.] rdg ± 1 digit

Sampling PeriodMin. 0.5 sec.

Input Line ResistanceTolerance line resistance is max. 5Ω

Control MethodON/OFF control (Adjustment sensitivity 0.5 ~ 5.0 °C, 2 ~ 50 °F variable)

Memory ProtectionApprox. 10 years (When using non volatile semiconductor memory)

Insulation ResistanceMin. 100MΩ (at 500 VDC)

Dielectric Strength2000 VAC 60 Hz for 1 minute (between all external terminal and case)

Noise Strength±2 kV R phase and S-phase (pulse width 1 µs)

Relay Life (COMP)Electrical: Min. 50000 times (250 VAC 5 A resistive load Mechanical: Min. 20000000 times

Storage Temperature-20 ~ 60 °C (at non-freezing status)

Relay Life (DEF)Electrical: Min. 100000 times (250 VAC 10 A resistive load)Mechanical: Min. 20000000 times

Relay Life (FAN)Electrical: Min. 50000 times (250 VAC 5 A resistive load)Mechanical: Min. 20000000 times

Mechanical Vibration0.75 mm amplitude at frequency of 10 to 55 Hz in each of X, Y, Z directions for 2 hours

Malfunction Vibration0.5 mm amplitude at frequency of 10 to 55 Hz in each of X, Y, Z directions for 10 minutes

Ambient Temperature-10 ~ 50 °C (at non-freezing status)

Ambient Humidity35 ~ 85%RH

DimensionsDIN W72 x H36mm

Power Supply100 - 240 VAC

Sensor InputNTC: Thermistor

Control OutputCompressor

Defrost output Evaporation - fan output
