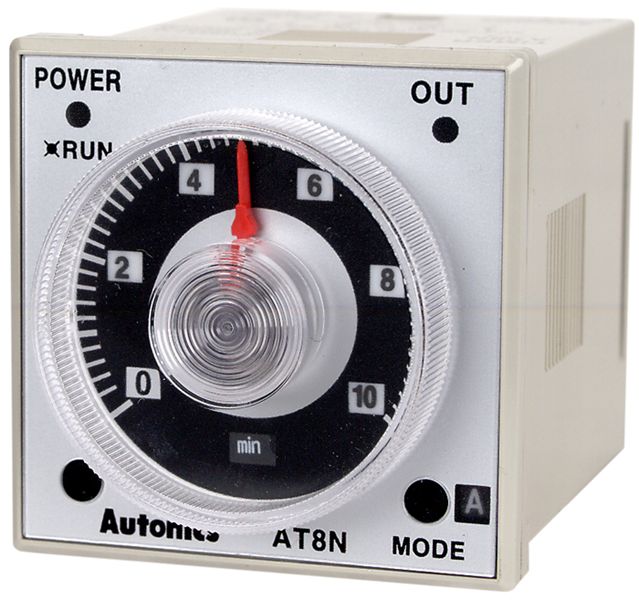

Autonics ANALOG Timer AT8N [Multi-Function timer] 0.05 วินาที to 100 ชั่วโมง

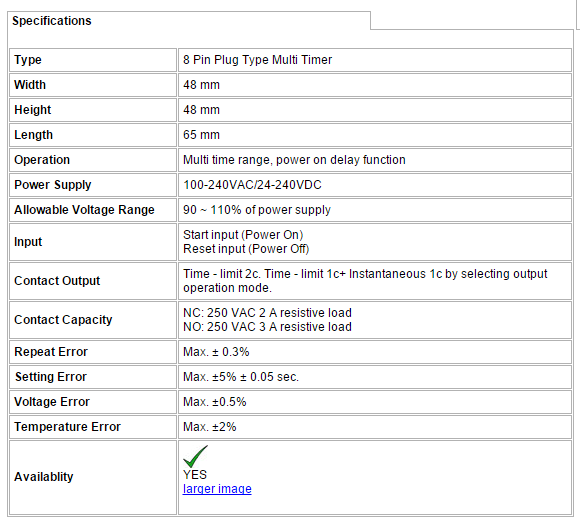

[Specification]

Autonics Analog Timer [ KOREA PRODUCTION]

Type  8 Pin Plug Type Multi Timer

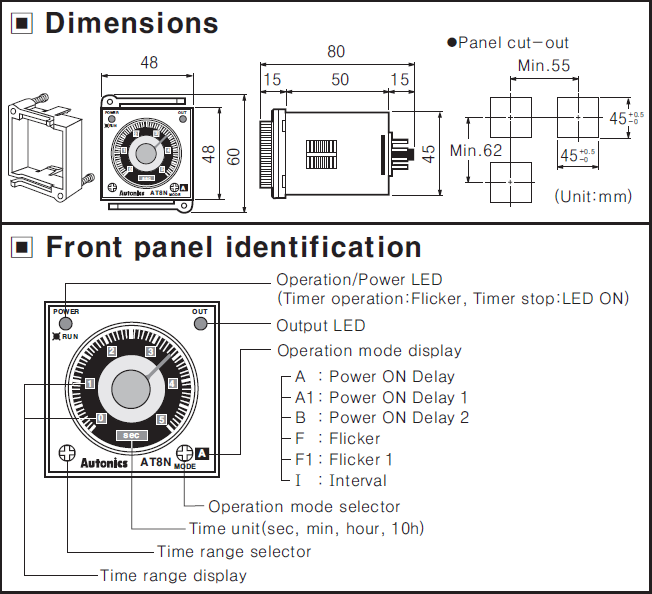

Width  48 mm

Height  48 mm

Length  65 mm

Operation  Multi time range, power on delay function

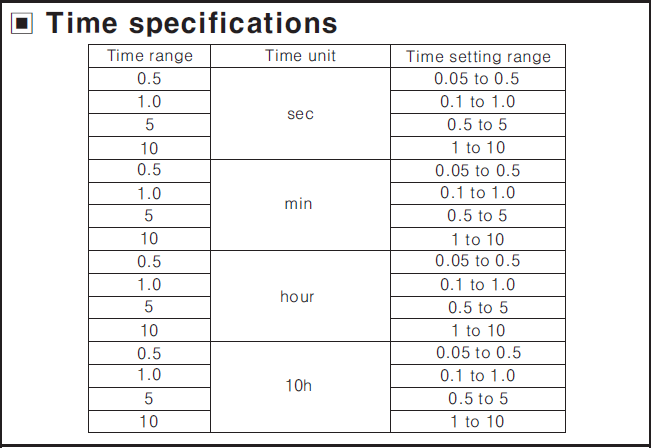

Multi time range (16 kinds of time range)

Wide control time (0.05sec. to 100hour)


Power Supply  100-240VAC/24-240VDC
Allowable Voltage Range  90 ~ 110% of power supply

Input  Start input (Power On)

Reset input (Power Off)

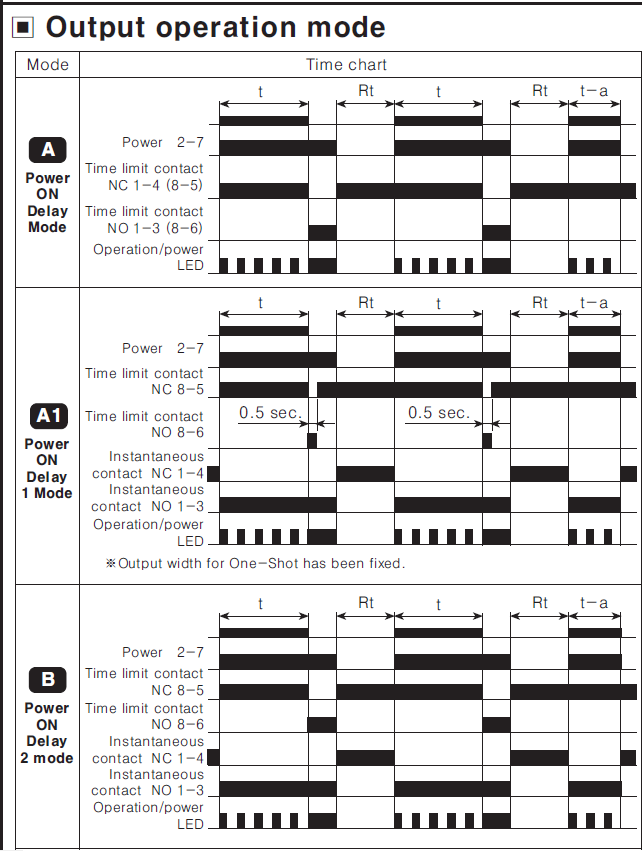

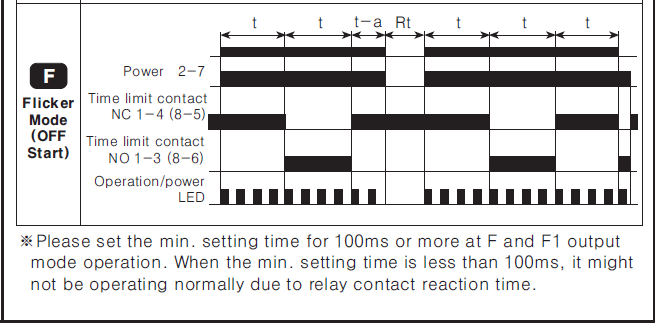

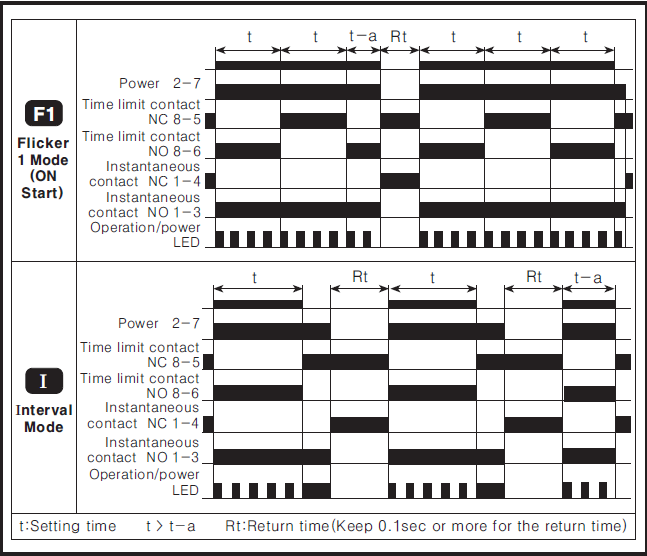

Contact Output  Time - limit 2c. Time - limit 1c+ Instantaneous 1c by selecting output operation mode.

Contact Capacity  NC: 250 VAC 2 A resistive load
NO: 250 VAC 3 A resistive load

Repeat Error  Max. ± 0.3%

Setting Error  Max. ±5% ± 0.05 sec.

Voltage Error  Max. ±0.5%

Temperature Error  Max. ±2%
